Specification Optical Parameters of Large LED Flood Light GD-F-220

• LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

• Color: W(2200K-6500K), R+G+B, R+G+B+W, RGBW

• Beam Angle:

• W-3030P7: 8°/10°/15°/20°/30°/45°/60°/80°

• RGB-3030P7/CREE XP series: 6°/8°/10°/15°/20°/30°/45°/60°/80°

• 3535: 30°/45°/60°/80°

• 5050: 17°/20°/30°/45°/60°

• Source Life: 50,000h

Electrical Parameters of Large LED Flood Light GD-F-220

• Working Voltage: AC85V-265V

• Rated Power: Maximum 54*3W

Control Parameters of Large LED Flood Light GD-F-220

• Control Method: DMX512 /ON OFF

• Gray Scale: 8Bits/16Bits

• Control System: GDCX-ALL the lights control system

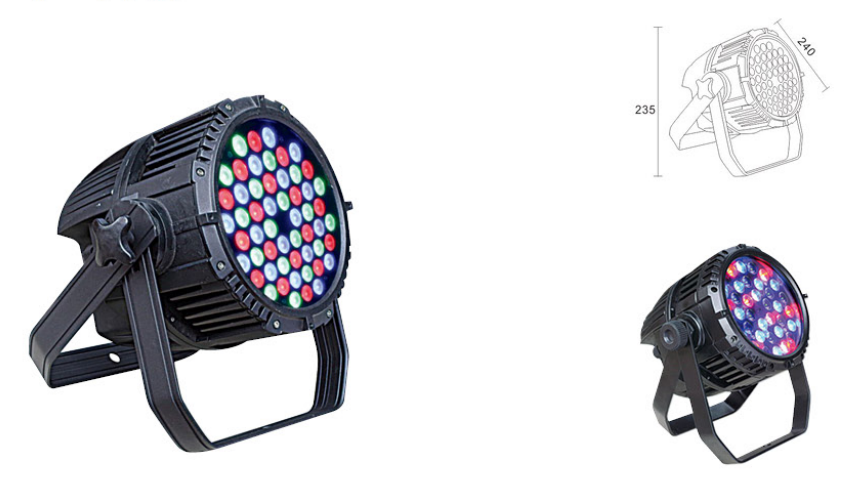

Structural Parameters of Large LED Flood Light GD-F-220

• Shell Material: High Strength Aluminum

• Cover: Tempered glass

• Surface Color: Black&White, Other colors optional

• Structure Size: ø240x235mm

• Total Weight: 4.43kg

Environmental Parameters of Large LED Flood Light GD-F-220

• Working Temperature: -40°C to 50°C

• Storage Temperature: -40°C to 70°C

• Protection rating: IP66

• Application environment: Outdoor
