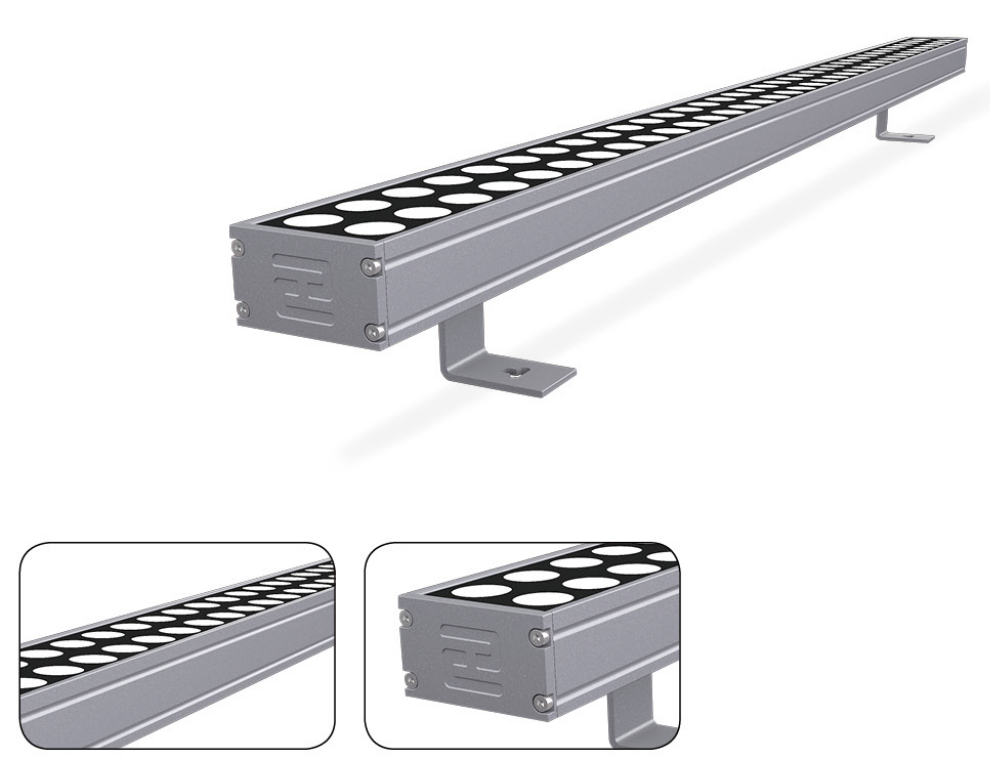

Specification Optical Parameters of Linear Wall Washer Light Outdoor GD-W-40

• LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

• Color: RGB, RGB+W, etc

• Beam Angle: 15*45°, 30°and other angles optional

• Source Life: 50,000h

Electrical Parameters of Linear Wall Washer Light Outdoor GD-W-60A

• Working Voltage: AC 85-265V

• Rated Power: Maximum 48W-72W-128W

Control Parameters of Linear Wall Washer Light Outdoor GD-W-60A

• Control Method: DMX512, ON/OFF

• Gray Scale: 8Bits/16Bits

• Control System: GDXC-ALL the lights control system

Structural Parameters of Linear Wall Washer Light Outdoor GD-W-60A

• Shell Material: Aluminum

• Surface Color: Black&White, Off-white, Other colors optional

• Structure Size: 1000mm x 60mm x 35mm (L x W x H, exclude Mounting Bracket)

• Cover: Aluminium alloy

• Total Weight: 3.35KG




Environmental Parameters of Linear Wall Washer Light Outdoor GD-W-60A

• Working Temperature: -40°C to 50°C

• Storage Temperature: -40°C to 70°C

• Protection rating: IP66

• Application environment: Outdoor
