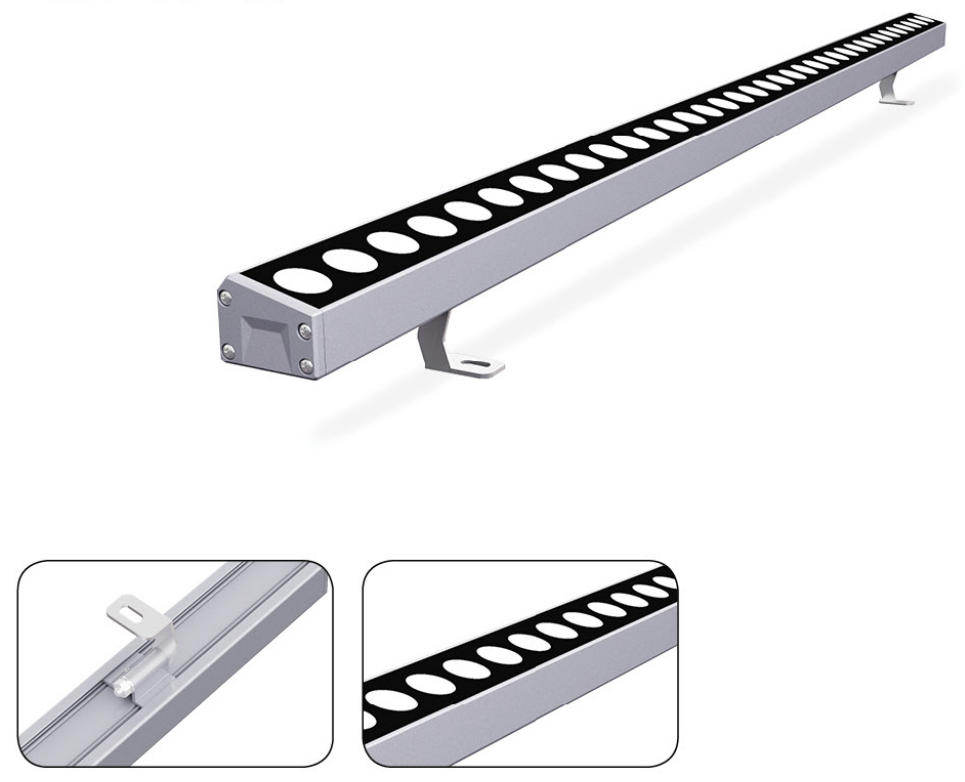

Specification Optical Parameters of Linear Wall Washer Light Outdoor GD-W-42

• LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

• Color: RGB, RGB+W, etc

• Beam Angle: 15*45°, 30°and other angles optional

• Source Life: 50,000h

Electrical Parameters of Linear Wall Washer Light Outdoor GD-W-42

• Working Voltage: DC 24V/220V

• Rated Power: Maximum 24W-36W

Control Parameters of Linear Wall Washer Light Outdoor GD-W-42

• Control Method: DMX512, ON/OFF

• Gray Scale: 8Bits/16Bits

• Control System: GDXC-ALL the lights control system

Structural Parameters of Linear Wall Washer Light Outdoor GD-W-42

• Shell Material: Aluminum

• Surface Color: Black&White, Off-white, Other colors optional

• Structure Size: 1000mm x 42mm x 32mm (L x W x H, exclude Mounting Bracket)

• Cover: Aluminium alloy

• Total Weight: 2.35KG




Environmental Parameters of Linear Wall Washer Light Outdoor GD-W-42

• Working Temperature: -35°C to 50°C

• Storage Temperature: -40°C to 70°C

• Protection rating: IP65

• Application environment: Outdoor
