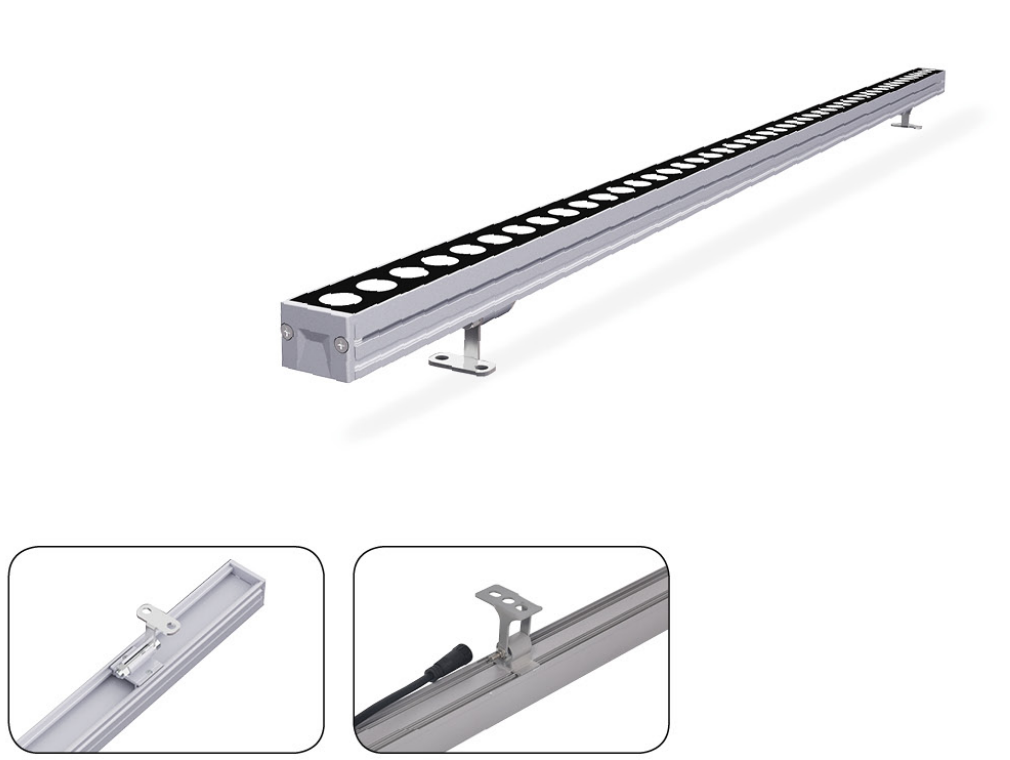

Specification Optical Parameters of Linear Wall Washer Light Outdoor GD-W-30

• LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

• Color: RGB, RGB+W, etc

• Beam Angle: 15*45°, 30°and other angles optional

• Source Life: 50,000h

Electrical Parameters of Linear Wall Washer Light Outdoor GD-W-30

• Working Voltage: DC 24V

• Rated Power: Maximum 12W-15W

Control Parameters of Linear Wall Washer Light Outdoor GD-W-30

• Control Method: DMX512, ON/OFF

• Gray Scale: 8Bits/16Bits

• Control System: EXC-ALL the lights control system

Structural Parameters of Linear Wall Washer Light Outdoor GD-W-30

• Shell Material: Aluminum

• Surface Color: Black&White, Off-white, Other colors optional

• Structure Size: 1000mm x 23mm x 16mm (L x W x H, exclude Mounting Bracket)

• Cover: Toughened glass

• Total Weight: 0.9KG




Environmental Parameters of Linear Wall Washer Light Outdoor GD-W-30

• Working Temperature: -40°C to 50°C

• Storage Temperature: -40°C to 70°C

• Protection rating: IP66

• Application environment: Outdoor
