GD-W-24

admin 2022-11-27 LED Wall Washer Light

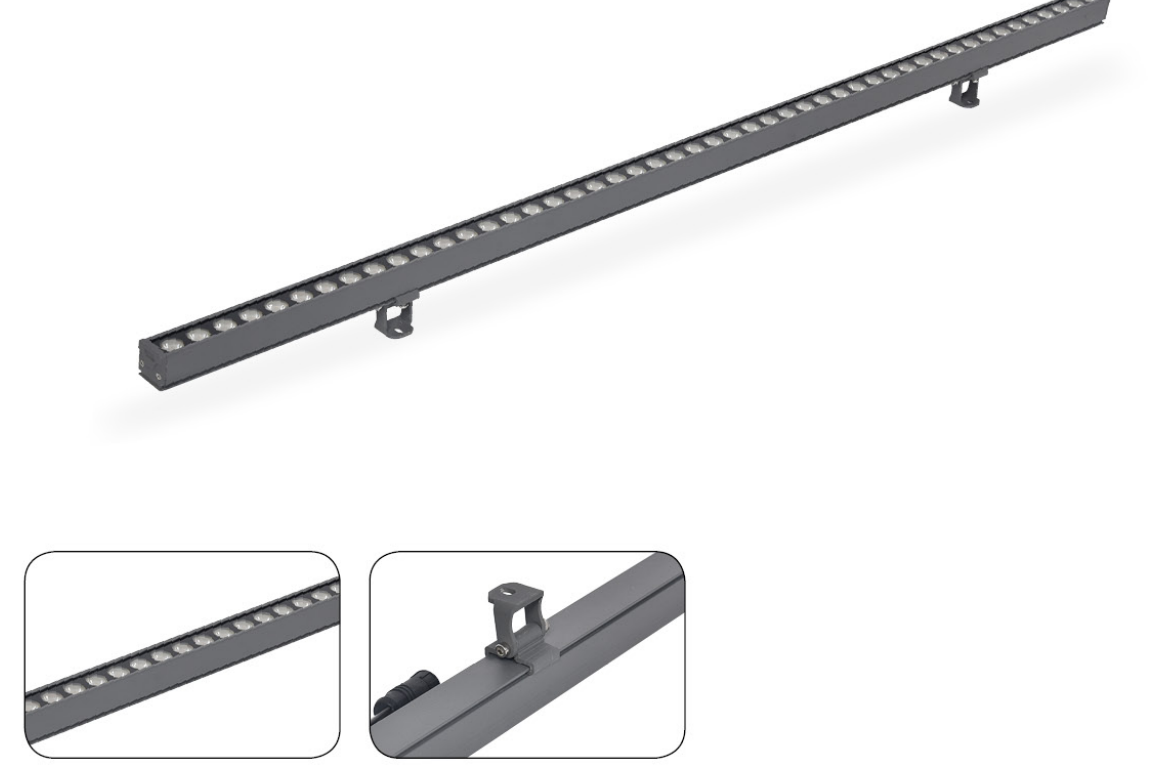

Specification Optical Parameters of Linear Wall Washer Light Outdoor GD-W-24

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, etc

  • Beam Angle: 15*45°, 30°and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Linear Wall Washer Light Outdoor GD-W-24

  • Working Voltage: DC 24V

  • Rated Power: Maximum 12W


Control Parameters of Linear Wall Washer Light Outdoor GD-W-24

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Linear Wall Washer Light Outdoor GD-W-24

  • Shell Material: Aluminum

  • Surface Color: Black&White, Off-white, Other colors optional

  • Structure Size: 1000mm x 23mm x 26mm (L x W x H, exclude Mounting Bracket)

  • Cover: Aluminium alloy

  • Total Weight: 0.94KG


Environmental Parameters of Linear Wall Washer Light Outdoor GD-W-24

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
