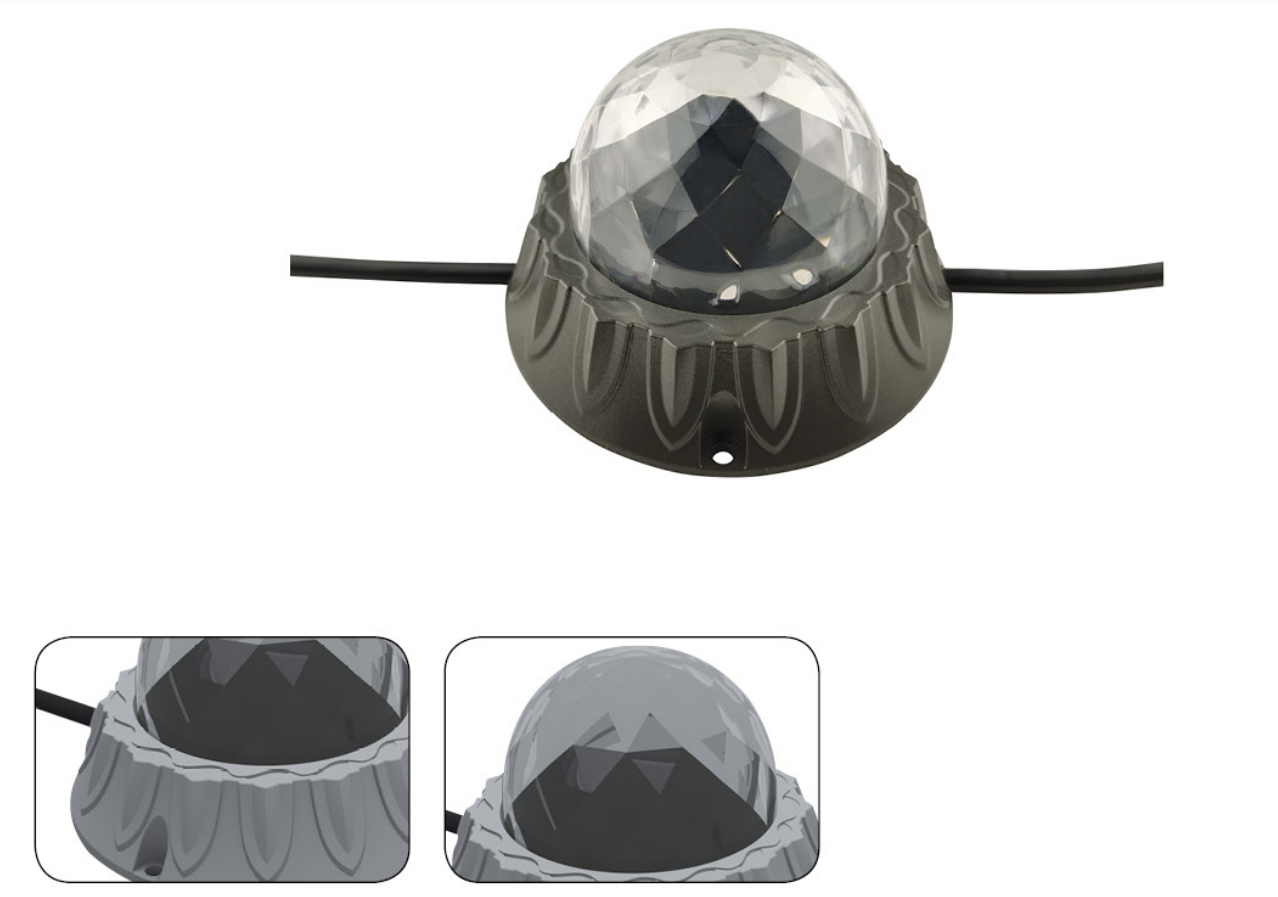

Specification Optical Parameters of LED Pixel Light 5W GD-P-80

• LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

• Color: RGB, RGB+W, W, etc

• Beam Angle: 120degree,Open beam and other angles optional

• Source Life: 50,000h

Electrical Parameters of LED Pixel Light 5W GD-P-80

• Working Voltage: DC24V

• Rated Power: Maximum: W(5W/6W), RGB(4//5W), RGB+W(5W/6W)

Control Parameters of LED Pixel Light 5W GD-P-80

• Control Method: DMX512/On Off

• Gray Scale: 8Bits/16Bits

• Control System: GD-ALL the lights control system

Structural Parameters of LED Pixel Light 5W GD-P-80

Shell Material: Aluminum

Surface Color: Black&White, Other colors optional

Structure Size: 110mm x 105mm x 62.5mm (L x W x H, exclude Mounting Bracket)

Total Weight: 300g

Environmental Parameters of LED Pixel Light 5W GD-P-80

• Working Temperature: -40°C to 50°C

• Storage Temperature: -40°C to 65°C

• Protection rating: IP66

• Application environment: Outdoor
