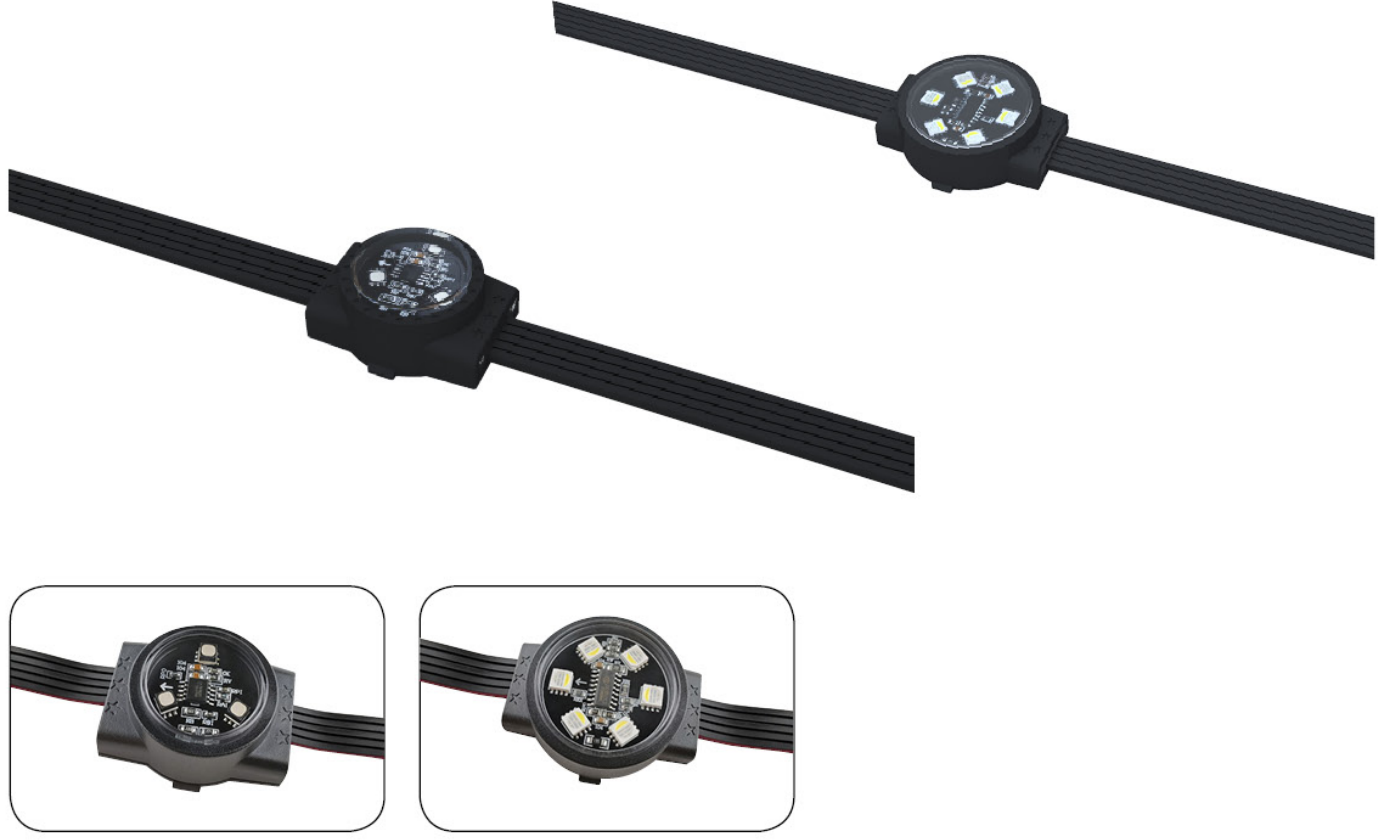

Outdoor Pixel Lights 0.72W/1.8W GD-P-30 Specification Optical Parameters

• LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

• Color:  RGB, RGB+W, etc

• Beam Angle: 120degree, Open beam, and other angles optional

• Source Life: 50,000h

Electrical Parameters of LED Pixel Light 0.72W/1.8W GD-P-30

• Working Voltage: DC 24V

• Rated Power: Maximum:0.72W/1.8W

Control Parameters of LED Pixel Light 0.72W/1.8W GD-P-30

• Control Method: DMX512/On Off

• Gray Scale: 8Bits/16Bits

• Control System: GD-ALL the lights control system

Structural Parameters of LED Pixel Light 0.72W/1.8W GD-P-30

• Shell Material: PC

• Surface Color: Black&White, Other colors optional

• Structure Size: ø30mm/ø40mm

• Total Weight: 10g

Environmental Parameters of LED Pixel Light 0.72W/1.8W GD-P-30

• Working Temperature: -40°C to 50°C

• Storage Temperature: -40°C to 65°C

• Protection rating: IP66

• Application environment: Outdoor
