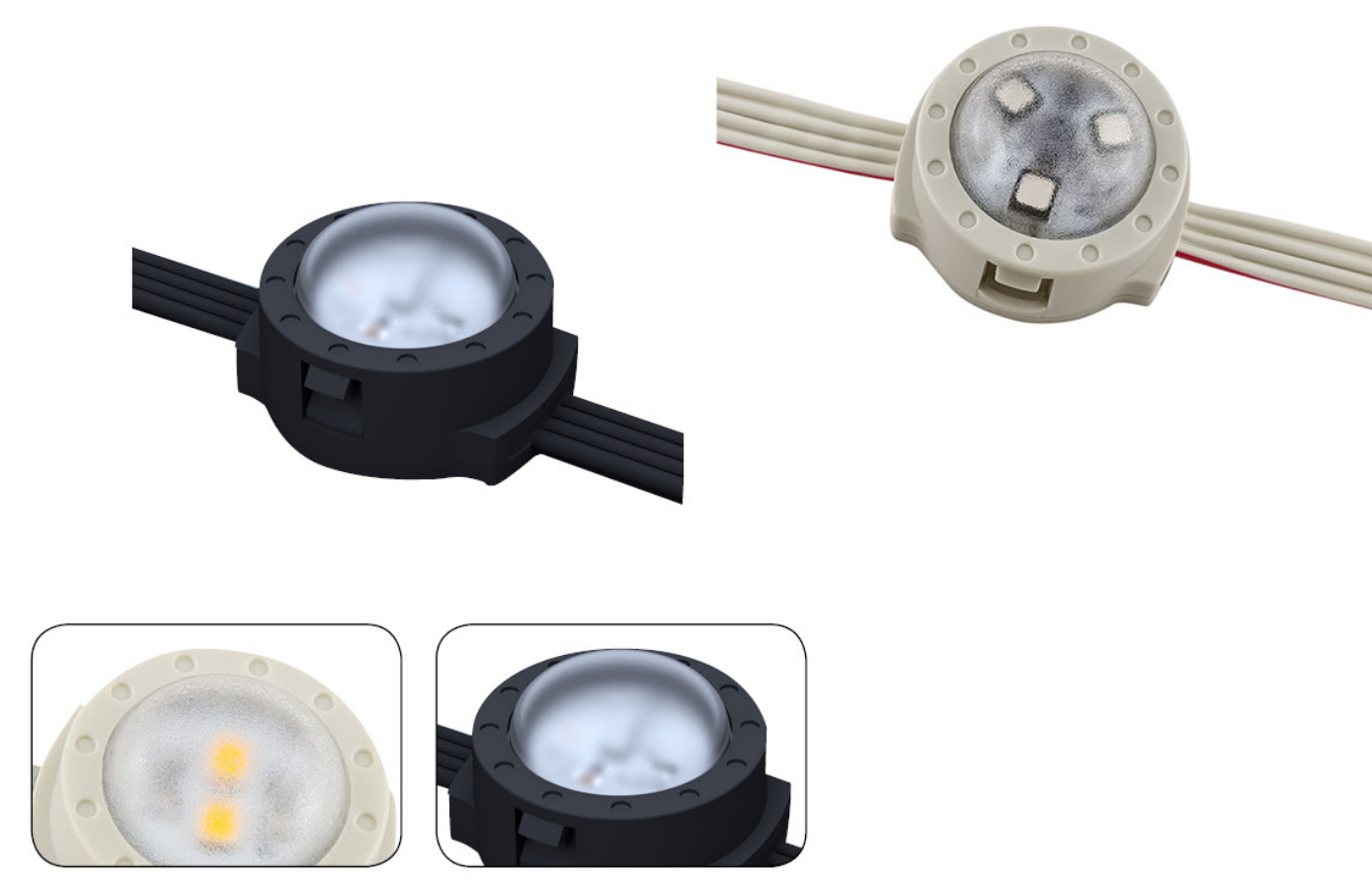

Outdoor Pixel Lights 1W GD-P-L17 Specification Optical Parameters

• LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

• Color:  RGB, RGB+W, etc

• Beam Angle: 120degree, Open beam, and other angles optional

• Source Life: 50,000h

Electrical Parameters of LED Pixel Light 1W GD-P-L17

• Working Voltage: DC 12V

• Rated Power: Maximum:0.72W

Control Parameters of LED Pixel Light 1W GD-P-L17

• Control Method: DMX512/On Off

• Gray Scale: 8Bits/16Bits

• Control System: GD-ALL the lights control system

Structural Parameters of LED Pixel Light 1W GD-P-L17

• Shell Material: PC

• Surface Color: Black&White, Other colors optional

• Structure Size: ø26mm

• Total Weight: 10g

Environmental Parameters of LED Pixel Light 1W GD-P-L17

• Working Temperature: -40°C to 50°C

• Storage Temperature: -40°C to 65°C

• Protection rating: IP66

• Application environment: Outdoor
