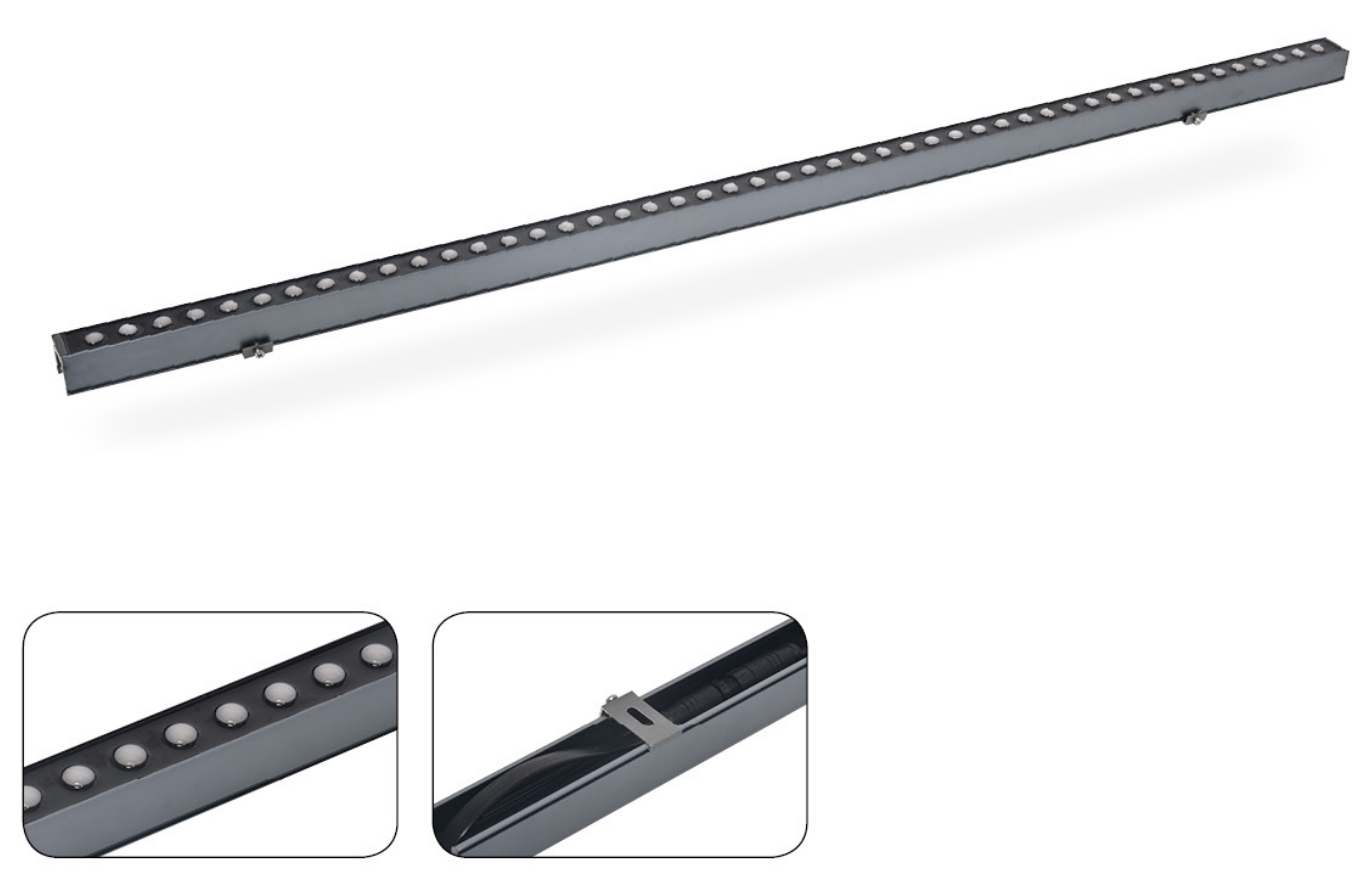

Specification Optical Parameters of Outdoor Linear Light  GD-L-28

• LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

• Color: RGB, RGB+W, etc

• Beam Angle: ≥110°

• Source Life: 50,000h

Electrical Parameters of Outdoor Linear Light GD-L-28

Working Voltage: DC 24V

• Rated Power: 9W/10W/12W

Control Parameters of Outdoor Linear Light GD-L-28

• Control Method: DMX512, ON/OFF

• Gray Scale: 8Bits/16Bits

• Control System: GD-ALL the lights control system

Structural Parameters of Outdoor Linear Light GD-L-28

Shell Material: Aluminum alloy

Surface Color: Black&White,Other color optional

Structure Size: 980mm x 28mm x 30mm (L x W x H, exclude Mounting Bracket)

Total Weight: 0.54Kg

Environmental Parameters of Outdoor Linear Light  GD-L-28

• Working Temperature: -40°C to 50°C

• Storage Temperature: -40°C to 70°C

• Protection rating: IP66

• Application environment: Outdoor
